Satlink WS-6916 - DVB-S2 HD 3.5" FTA digital satellite meter
Професионален уред за настройка на сателитни системи
3.5 Inch HD TFT LCD Screen
Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant
Supports scan of Auto ,Blind, Manual or NIT
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2, 0/22 khz Tone
LNB short protect
Satlink WS-6916 - DVB-S2 HD 3.5" FTA digital satellite meter
Професионален уред за настройка на сателитни системи
Описание

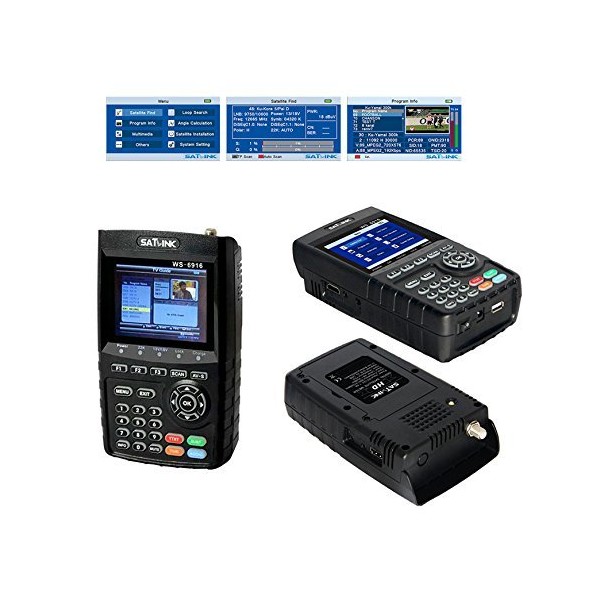

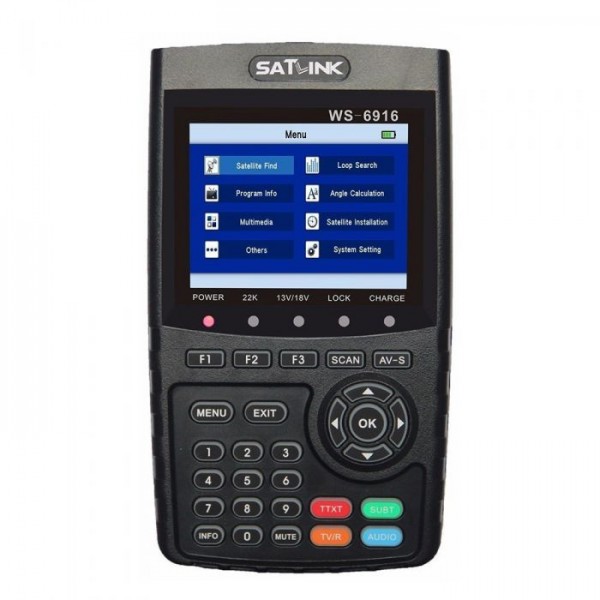

DVB-S2 HD Satlink WS-6916 Satlink WS-6916 3.5" FTA digital satellite meter
Model: WS6916
DVB-S2 HD Satellite Finder with MPEG2 / MPEG4 Compliant, 3.5 inch LCD Screen and Backlight.
Features:
3.5 Inch High Definition TFT LCD Screen
Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant
MPEG-2 / H.264 Hardware decoding

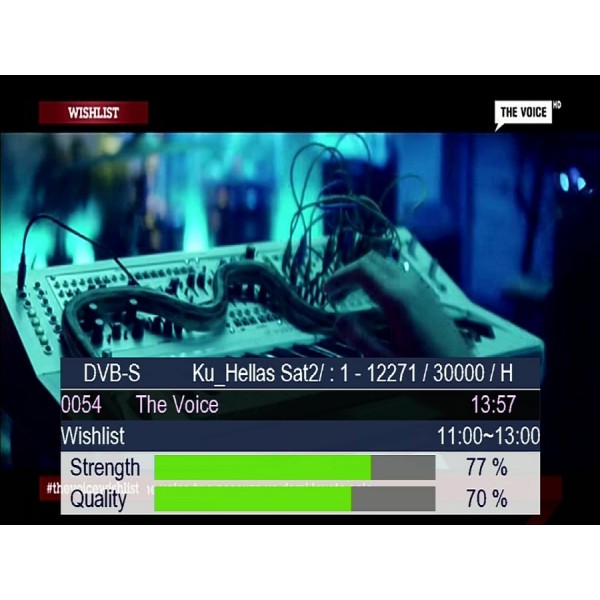

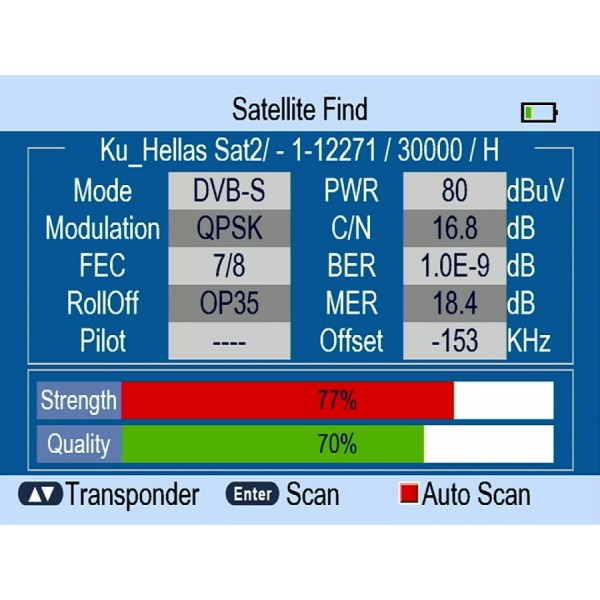

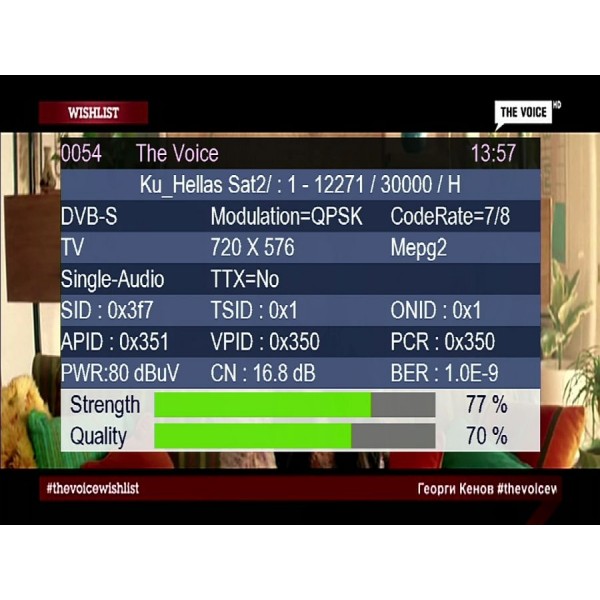

Digital meter for signal strength and quality

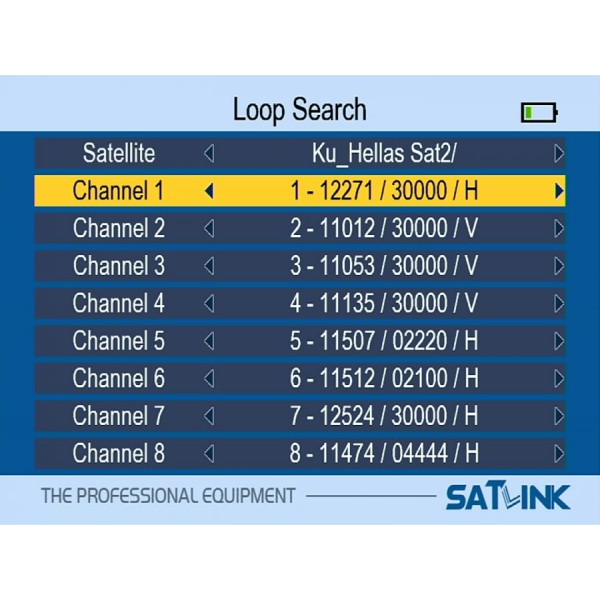

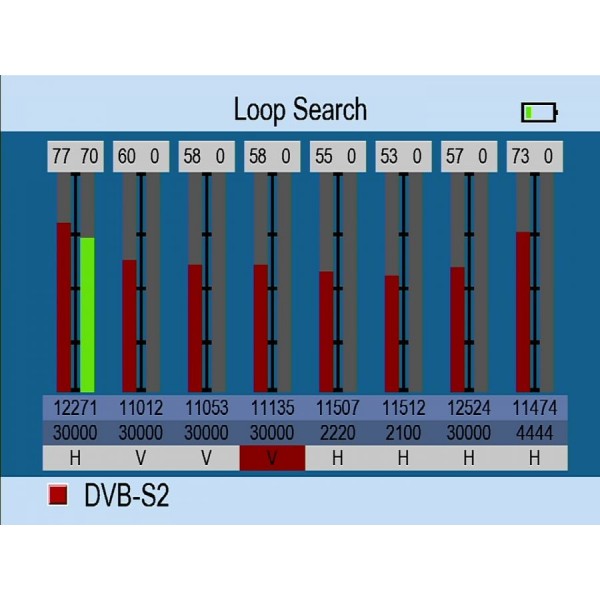

Supports for multiple TP detection

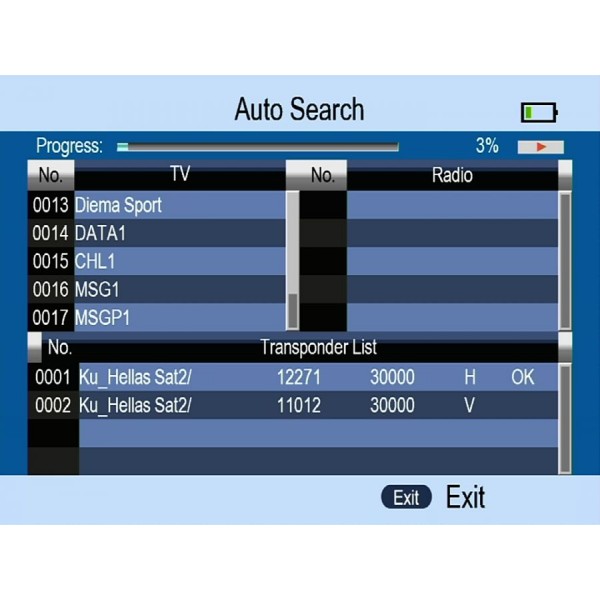

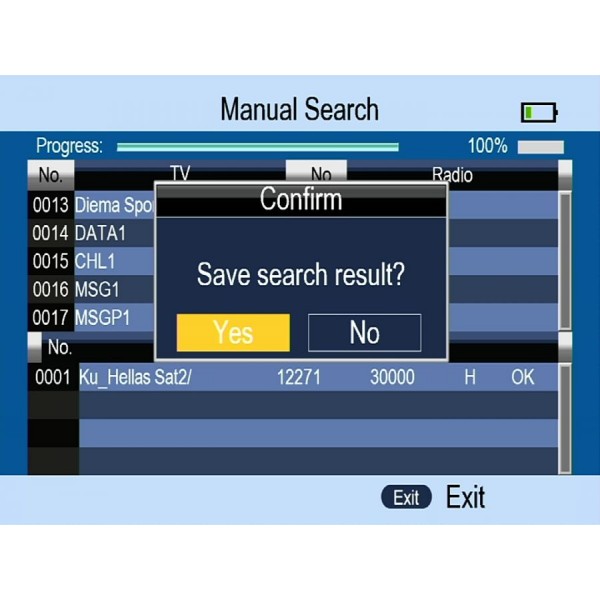

Supports scan of Auto ,Blind, Manual or NIT
Sound and Light Alarm for Locking Signal

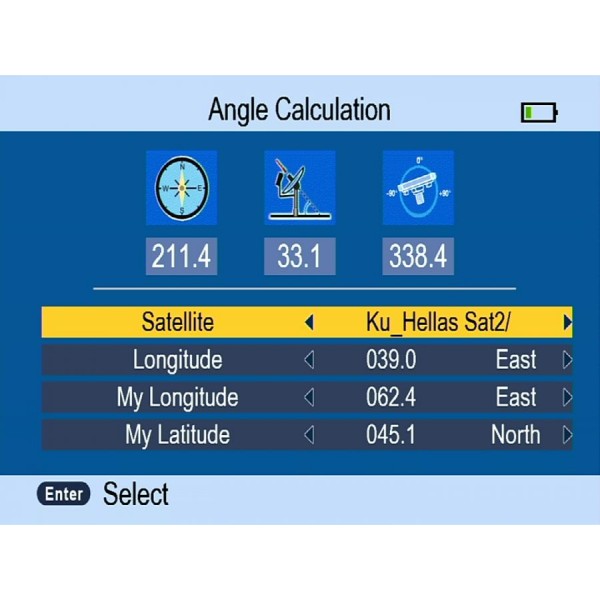

Auto Calculate Angle of AZ ,EL

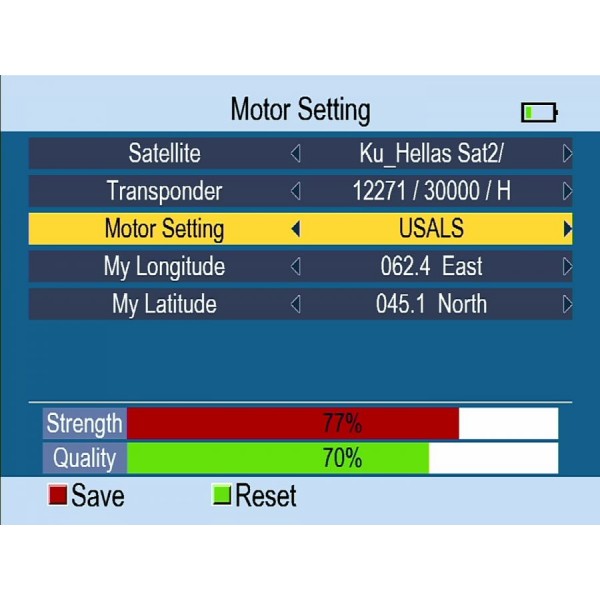

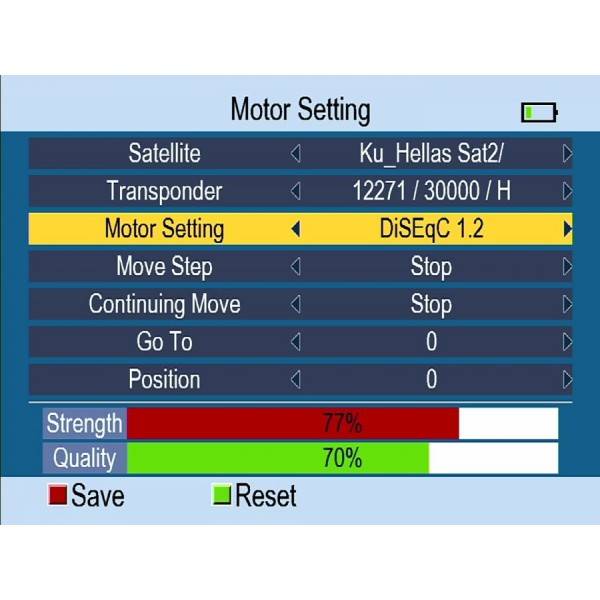

Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
Speaker Integrated
Supports AV out/in and HDMI out
LNB short protect
7.4V/3000mAh Li-ion Battery Included

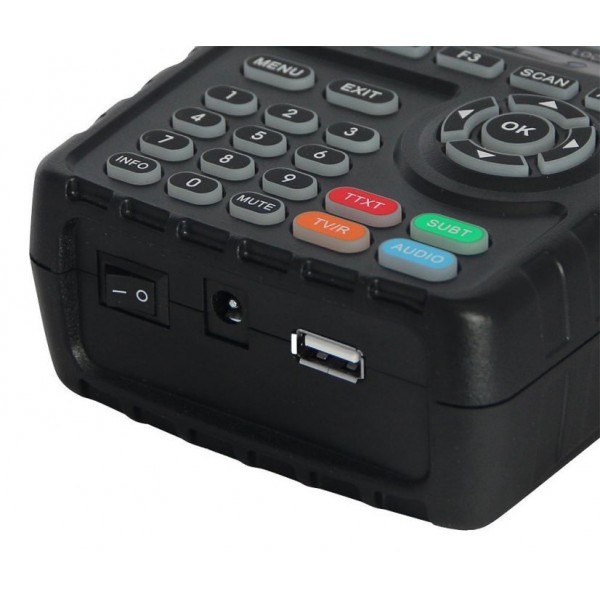

Software upgrade via USB port
Specifications:
|
TRANSMISSION STANDARDS |
|
|||
|
DVB-S2/S, MPEG-2,MPEG-4,H.264 |
|
|||
|
SATELLITE INPUT/DEMODULATION |
|
|||
|

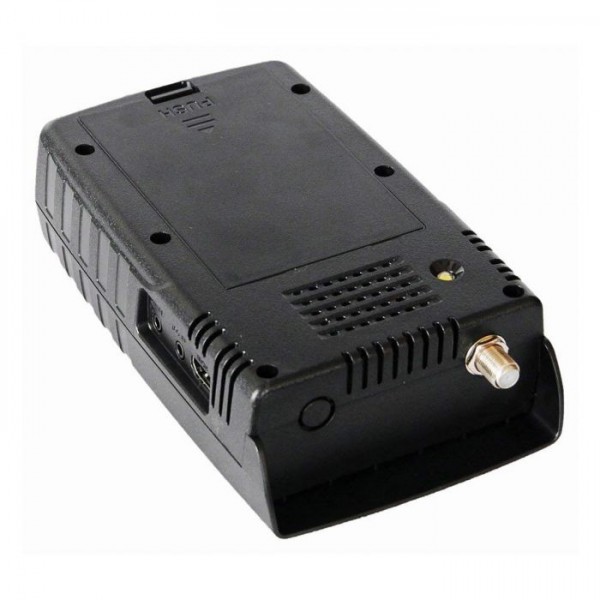

Connector Type |
F Type |
|
||
|
Input Frequency |
950 to 2150 MHz |
|
||
|
Signal Input Level |
- 65 to -25 dBm |
|
||
|
Band Switch Control |
22KHz |
|
||
|
LNB Supply |
13V/18V, IMax 400mA |
|
||
|
Demodulation Type |
QPSK,8PSK |
|
||
|
Symbol Rate |
2 |
|
||
|
LCD FEATURES |
|
|||
|
LCD Type |
TFT Transmissive |
|
||
|
Number of Dots |
480(RGB) x272 |
|
||
|
Active area (WxH) |
70.02x52.58 mm2 |
|
||
|
AV output interface |
|
|||
|
Connector Type |
3.5 mm jack |
|
||
|
Video Output |
CVBS |
|
||
|
Audio Output |
Stereo Audio L/R output |
|
||
|
HDMI output connecter |
|
|||
|
Format |
HDMI 1.3a |
|
||
|
AV input interface |
|
|||
|
Connector Type |
3.5 mm jack |
|
||
|
Video Input |
CVBS |
|
||
|
Audio Input |
Stereo Audio L/R input |
|
||
|
AUDIO/VIDEO PROCESSING |
|
|||
|
Video decompression |
MPEG‐2 MP@HL, MPEG‐1 Decoding,MPEG‐4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding |
|
||
|
Resolving rate |
PAL‐25 frame@720*576,NTSC‐30 frame@720*480 |
|
||
|
Signal compatibility |
Support conversion for different video formats |
|
||
|
Video Format |
4:3,16:9,By Pan & Scan and Letter Box conversion |
|
||
|
Audio Decompression |
MPEG‐1 Layer I/II, MPEG‐2 Layer I/II |
|
||
|
|
Audio Output Mode |
Stereo, Mono,R/L |
||
|
|
DATA SERVICE PORT |
|||
|
|
Connector |
USB |
||
|
|
Data Protocol |
USB2.0 interface |
||
|
|
File Management System |
NTFS,FAT32,FAT16 |
||
|
|
File Format |
wma,mp3,mp4,avi,jpg,jpeg,bmp,img |
||
|
|
MICROPROCESSOR |
|||
|
|
Microprocessor |
78346 |
||
|
|
Clock Frequency |
550MHz |
||
|
|
SDRAM Memory |
DDR2 512Mbit |
||
|
|
POWER SUPPLY |
|||
|
|
Li‐Ion Battery |
7.4V/3000mAh |
||
|
|
Adapter |
OUTPUT :DC12V/1.5A, INTUPT: 100‐240VAC 50/60Hz |
||
|
|
Power Consumption |
Max. 10W |
||
|
|
PHYSICAL CHARACERSTICS |
|||
|
|
Size (W x D x H) |
10.1x17.7 x4.7(cm3) |
||
|
|
Net Weight |
0.46kg |
||

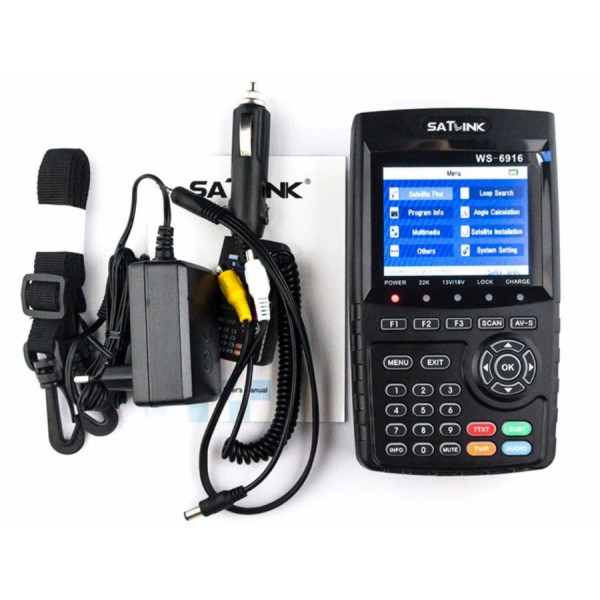

Комплектът включва:
- WS- 6916 уред за настройка
- AV кабел
- Захранващ адаптер
- Захранващ кабел за кола
- Протектор
