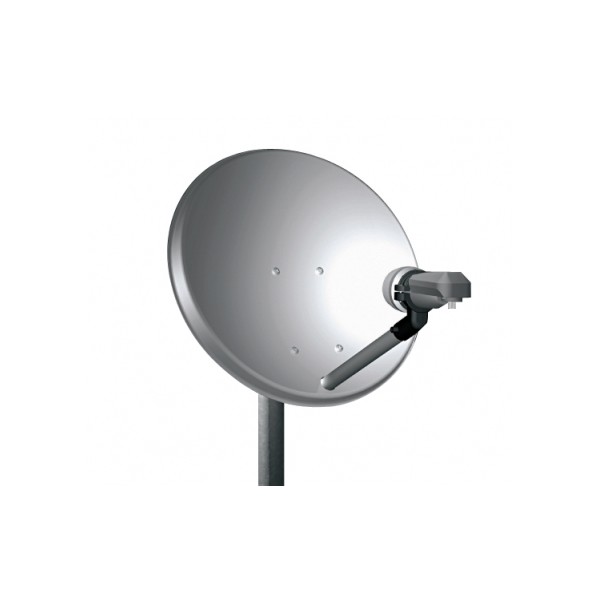

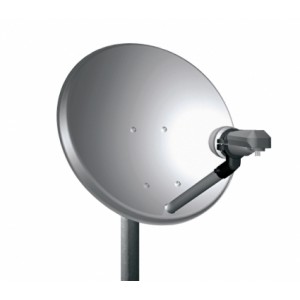

TELE SYSTEM TE40

Офсетова сателитна антена 42.4 х 42.4 см

TELE System

Satellite antenna ТЕ 40

Подходяща за кемпери, каравани, къмпинг, TIR.

Изключително малко ветрово натоварване.

TELE System

Satellite antenna ТЕ 40

Подходяща за кемпери, каравани, къмпинг, TIR.

Изключително малко ветрово натоварване.

TECHNICAL DATA

Dish dimension (external) (mm)	424 x 424
Gain at 10,75 GHz (dB)	32,0
Gain at 11,75 GHz (dB)	32,2
Gain at 12,75 GHz (dB)	32,6
Half power beamwidth at 12,75 GHz (deg.)	< 5,0°
Cross polar discrimination on main axis (dB)	>27
Mast clamp for (mm)	32 - 60
Elevation range (deg.)	5° - 90°
Elevation with passing pole	47°
F/D ratio	0,6
Offset angle (deg.)	25°
Windloading at 72 Km/h (Kg)	5
Windloading at 144 Km/h (Kg)	20
Windloading at 216 Km/h (Kg)	45
Feed bracket diameter (mm)	23 / 40
Reflector material	steel

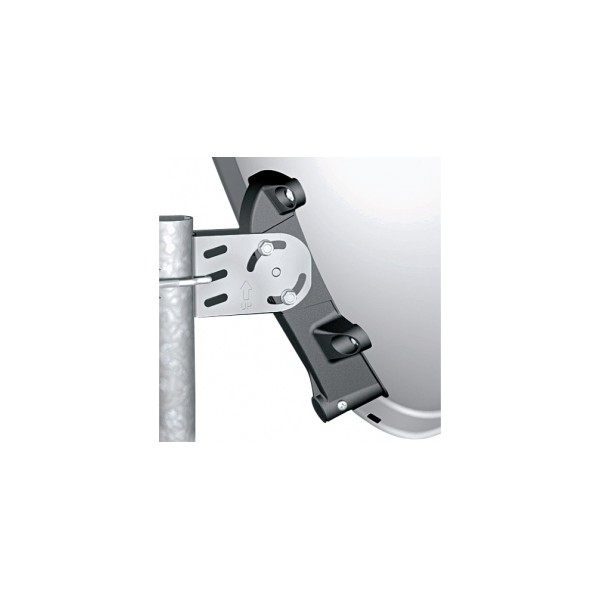

Back mount made of	plastic

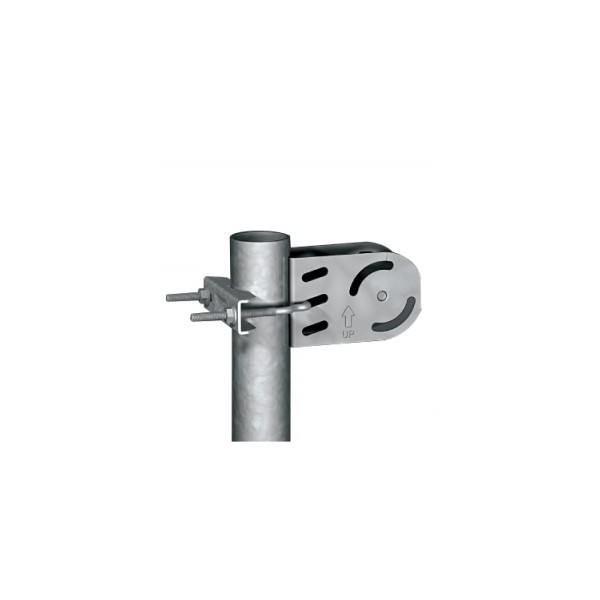

AZ/EL holder made of	galvanized steel

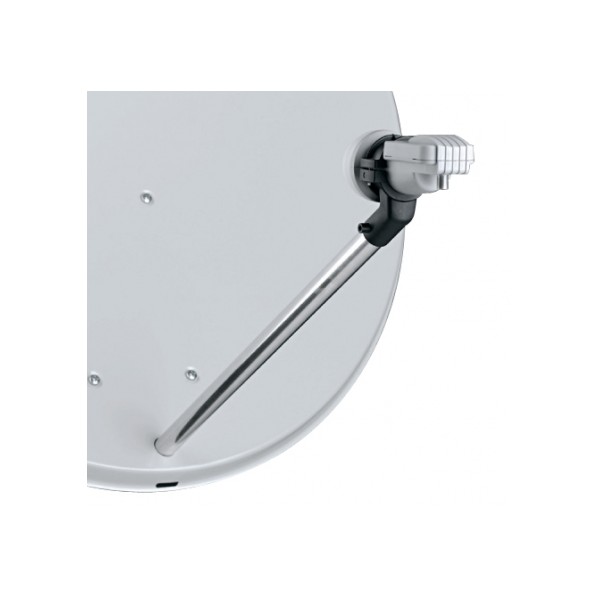

LNB Arm (diameter 22 mm) made of	aluminium

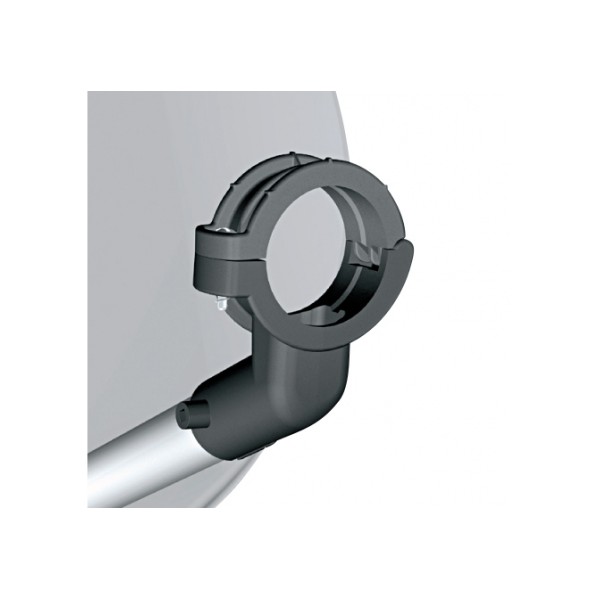

LNB Holder made of	plastic
