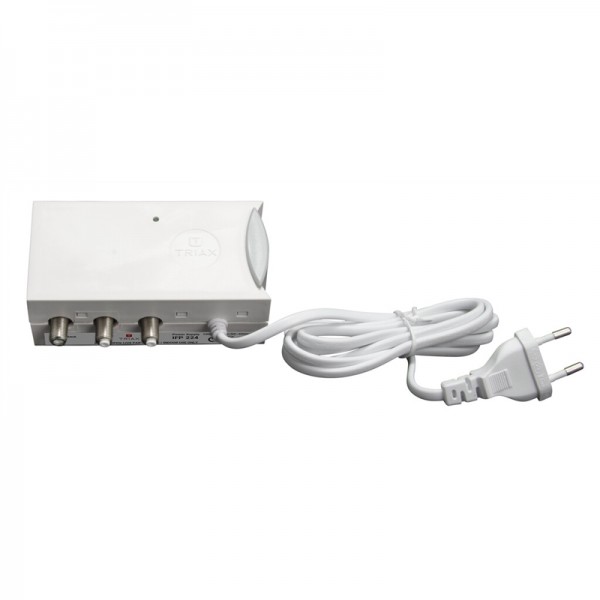

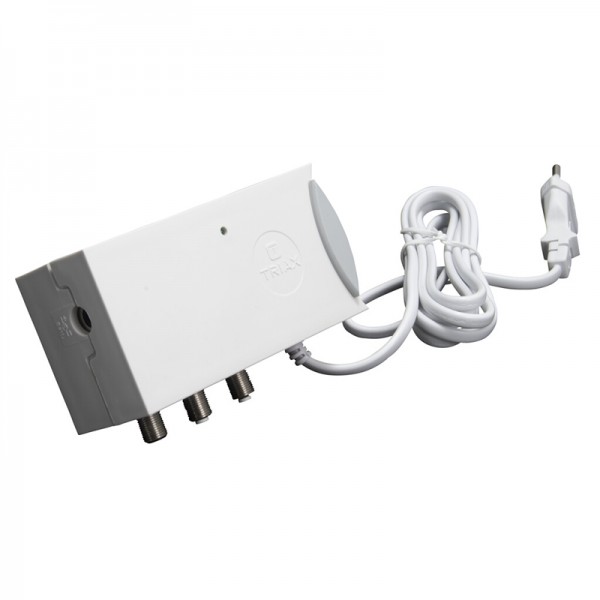

Triax IFP 224 Power Supply + Inserter (Въшно захранване за активни антени)
два входа 220 V AC / 12V DC
Захрава активната DVB-T антена с 12/24V DC.
· Автоматично превключване от 12V DC на 220V AC
· При 230V AC, подава 24V DC 200mA
· При 12V DC, подава 12V DC 200mA
· 1 x RF F-connector вход за антена
· 2 x RF F-connector изхода
Triax IFP 224 Power Supply + Inserter
(Въшно захранване за активни антени)
TRIAX power supplies in elegant design.
F-connector on all inputs.
Simple and easy installation.
The 2 outputs are equipped with auto-terminated F-connector meaning that there is no need to terminate an un-used output.
Including a power supply / inserter to power a UFO antenna when used in a camping-car and powered from the 12V DC delivered from the camping-car.

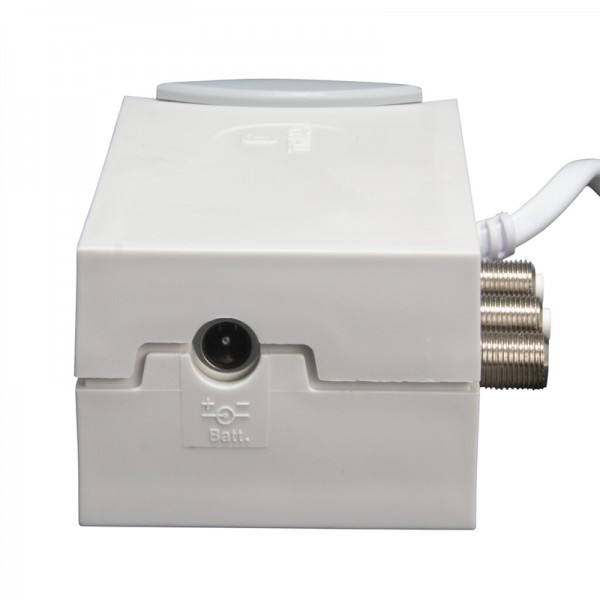

· 2 inputs, AC + DC 12V
· Automatic switch from 12 VDC to 230V AC input upon availability
· When connected to 230V AC, delivers 24V DC 200mA
· When connected to camping-car 12V DC, delivers 12V DC 200mA

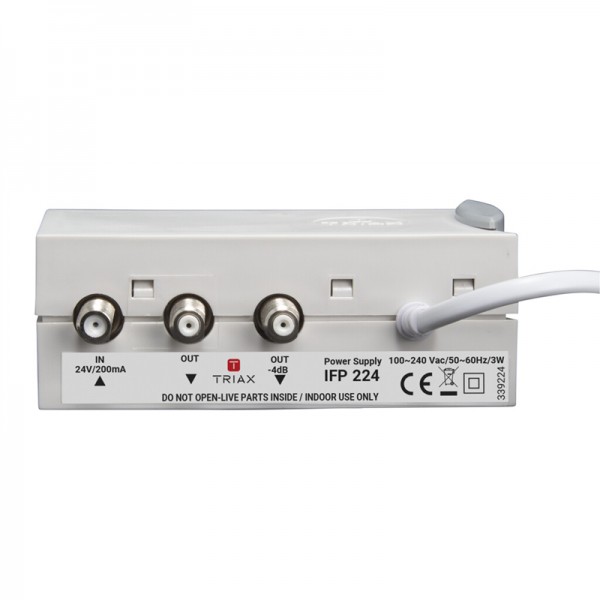

· 1 x RF F-connector input
· 2 x RF auto-terminated F-connector outputs for 2 x TV sets
· Signal insertion loss: 4dB.
· Quick and easy installation
· Install instruction already available on UFO 150/170 box and manual
· Single packed in compact color retail cardboard box.
Specifications
| Impedance | 75 Ω |
| Connector type | F-type |
| Band | VHF/UHF |
| Frequency range | 47-862 MHz |
| Through loss | 4.0 dB |
| Input | 1 |
| Output | 2 |
| Max. power | 200 mA |
| DC Supply Voltage | VDC | 12 V DC |
| AC Supply voltage | VAC | 100...240 VAC |
| PSU output DC voltage | VDC | 24 (12@inserter) VDC |
| PSU output max. DC current | mA | 200 mA |
| Certification | CE |
| Packaging Depth | 0,150 m |
| Packaging Height | 0,070 m |
| Total Weight | 0,345 kg |
| Packaging Width | 0,110 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,315 kg |
| Tara Weight | 0,030 kg |
Производител: TRIAX (Дания)
